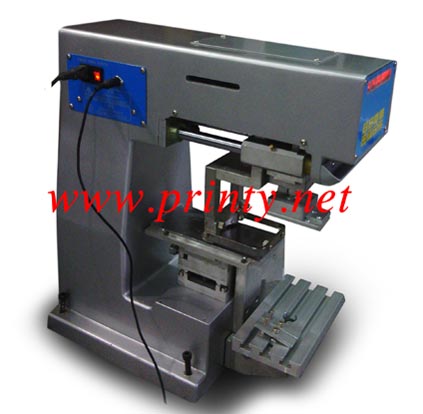

| PM-180C |
| BENCHTOP SINGLE COLOR INKCUP PAD PRINTER |
| |
| |
Features: |
| |
- Advanced computerized system control
- Single chip microprocessor technology is being used
- Pneumatically driven
- Infrared photo sensor and hydraulic absorber are adopted
- Built-in LED digital counter Emergency stop system to ensure the safety of operator
- Light-weight, strong aluminum cast machine structure
- Ink trays, work table and pads are independently adjustable for easy color registration
- Speed, pad and printing stroke are easily adjustable for different printing requirements Ink tray, doctor blade, nylon ink pusher and pads are easily installed and dismounted for quick cleaning
|
| |
Main Specifications: |
| |
- Max. plate size 100x180mm
- Ink cup size 55mm (Inside dia.)
- Max. work piece height 70mm
- Air pressure 0.45-0.60 Mpa/cm2
- Power 110/220V 50/60Hz
- Machine dimension 540x200x400mm
- Package dimension 585x275x440mm
- Net weight 45kg
- Gross weight 65kg
|
| |
|
|
|
|
|
