PM-S60A1C

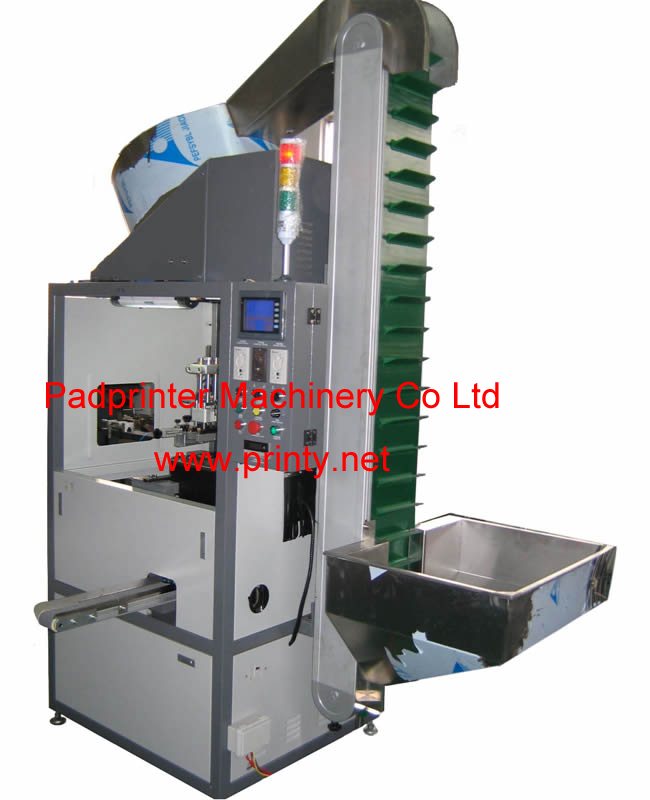

Fully Automatic Single Color Wine Bottle Cap Screen Printer

  Features:

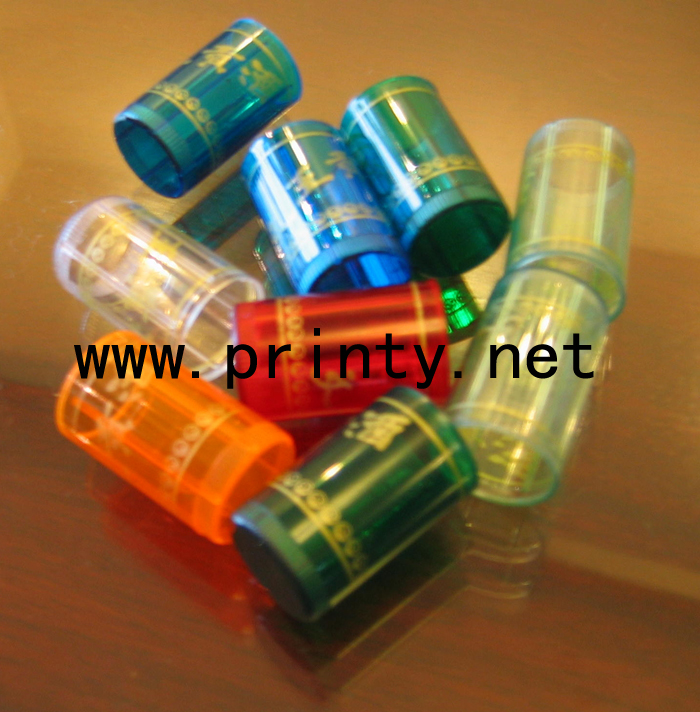

  1. It is designed for printing single color on round surface such as wine bottle caps,tubes, costmetic lips, canisters etc.,It has the advantage of steady, easy operation, high printing speed, good printing results etc..The product material can be plastic or metal etc.
  2. Auto feeding, auto printing, auto ink drying and auto delivering;
  3. Builds with PLC and touch screen for good operation control;
  4. No feeding no printing, low feed alarms;
  5. Flame treatment, UV or hot air drying can be seleted.
  6. By changing essential parts fixtures similar products can be auto printed.
  7. Pneumatically driven which effectively reduces noise in operation.
  8. Brand-name pneumatic parts are used.
  9. Squeegee/flood bar depth, pressure, speed, leveling and stroke, etc. are all adjustable.
  Main Specifications:

Printing Speed 4000~5000pcs/hr
Printing Size Round Dia φ15~φ60mm

Printing Length

20~200mm

Compressed Air

0.6~0.8MPa

Lp Gas

0.15MPa

Dimension 2800X2600X1600mm
Power 3 phase 380V 3KW
Machine weight 900kk
