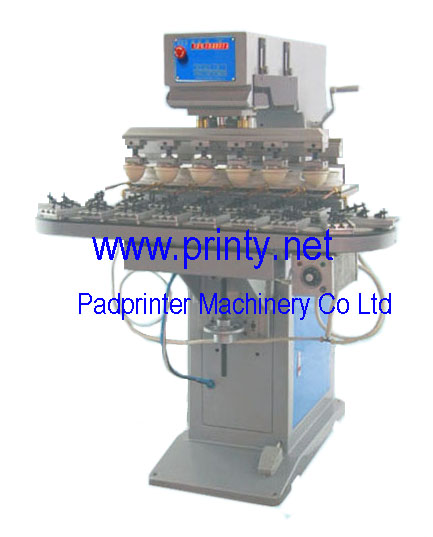

| Max. plate size(mm) |
100x250 |
| Max printing diameter(mm) |
Ø80 |
| Max printing length(mm) |
155 |
| Max pad head downward travel(mm) |
50 |
| Max pad head forward travel(mm) |
200 |
| Work table X-axis travel(mm) |
40 |
| Work table Y-axis travel(mm) |
65 |
| Work table Z-axis travel(mm) |
280 |
| Work table offset angle(°) |
|
| Pad adjustment X-axis(mm) |
45 |
| Pad adjustment Y-axis(mm) |
65 |
| Shuttle stroke(mm) |
|
| Conveyor pitch of index(mm) |
125 |
| No of jig fixture(pc) |
18 |
| Distance between work pieces(mm) |
125 |
| Max workpiece height(mm) |
280 |
| Pad printing pressure(MPa) |
30.1 |
| Max pad head forward pressure(MPa) |
7.5 |
| Shuttle pressure(MPa) |
|
| Conveyor pressure (MPa) |
7.5 |
| Max speed(pcs/min) |
20 |
| Air pressure(MPa/cm2) |
0.45-0.60 |
| Air consumption(L/min) |
15 |
| Power supply |
110/220V 50/60Hz |
| Power consumption(W) |
620 |
| Machine dimension(mm) |
1170X1200X1460 |
| Packing dimension(mm) |
1350X1380X1700 |
| Net weight(kg) |
285 |
| Gross weight(kg) |
370 |
