| PM-S1545/2 |

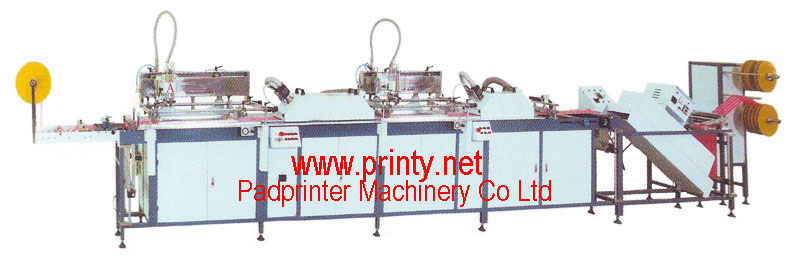

| Fully Automatic 2-color Ribbon Screen Printing Machine |
| |
| |
Features: |
| |
- Suitable for printing on all kinds of textile ribbons like cotton webbing, silk or satin ribbons, shoelaces, straps, lanyards...etc.
- Suitable for printing on plastic films in rolls.
- It can print simultaneously up to 15 ribbons in 2 colors, which largely increase your printing capacity.
- Printing quality is still high on rough surface or deep color fabrics.
- The printed ribbons look fresh and bright even it is frequently washed.
- Programmable PLC computer system is built-in the machine so that you can change your printing programs easily.
- Applies the German and Japanese pneumatic control elements for quiet and accurate printing.
- User friendly designed touch screen monitor are installed.
- Accuracy of color registration is maintained within ±0.1mm.
- Pneumatically driven which effectively reduces noise in operation.
- Sensor is installed in the machine to detect the ribbons. If the ribbon roll is finished, the machine will stop automatically and alert you.
- Glue system and vacuum function are available on the printing table to secure fixing of ribbons throughout the entire printing cycle or intermittently.
- It is equipped with strong hot air dryers to ensure the colors printed are completely dried.
|
| |
Main Specifications: |
| |
- Max. printing area: 450 x 150mm
- Max. frame size: 680 x 300mm
- Max. printing speed: 20 cycles per min
- Power: 380V, 3 phases,15KW
- Air pressure: 0.5 - 0.65MPa/cm²
- Air consumption: 3.1 L/min
- Machine dimension: 855x72x173cm
- Packing dimensions: 163x105x178cm;167x110x170cm;206x105x150cm;188x92x152cm;140x107x164cm
- Net weight:1800kg
- Gross weight: 2850kg
|
| |
|
|
|
|
|
